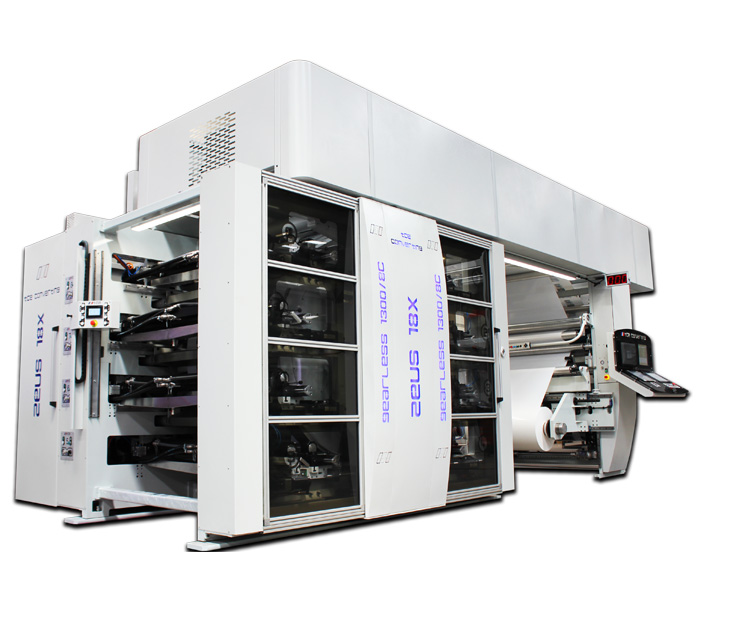

Gearless Zeus 18x

8 Colours CI Serie Printing Machine

The operator has fully control over all components on the machine with the control panels. The general machine condition, washing system, viscosimeter and the inspection system can be controlled from the HMI panel. The printing decks are equipped with high resolution servo motor which have high precision linear guides that take part in the printing position.

Colours 8
Print Width (mm)  1270
Min. Repeat (mm)  350
Max. Repeat (mm)  800
Max. Speed (m/dak)  300
Driving Style Gearless
Dimension (m) W : 4,5       L : 10      H : 3,5

Chamber Doctor Blade System

This system has an effortless and quick solutions for the changing of the doctor blade. It has a perfect ink flow, and a very strong construction for the high performance printing. The sleeve anilox cylinders which are controlled by the Chamber Doctor Blades have excellent ink transmission. Inking management has control with the HMI panels for viscosimetres and ink washing system.
