Achieve 2 different coating and 3 different lamination processes in a single machine: Wax Coating, Hot Melt Coating in Register, Wax Lamination, Hot Melt Lamination, and Solventless Lamination.
1300 mm
500 mm
1000 kg
300 m/min
200 m/min
60-180 °C
| MACHINE SPECIFICATIONS | Values |
|---|---|
| Max. coating width | 1300 mm |
| Min. web width | 500 mm |
| Max. reel diameter unwind / rewind | 1000 mm |
| Max. reel weight unwind / rewind | 1000 kg |
| Core diameter on unwind and rewind | 76 and 152 mm |
| Web tension range on unwind and rewind | 30 to 400 N |
| Web tension accuracy | +/- 2 N |
| PRODUCTION SPEED | Values |
| Waxing one side | 300 m/min |
| Waxing two sides | 200 m/min |
| Hot melt coating | 100 - 200 m/min |
| Laminating with Alu, PET or OPP | 250 m/min |
| Pattern hotmelt coating (option) | 200 - 250 m/min |
| COATING WEIGHT - TEMPERATURE | Values |
| Wax coating weight one side | 4-12 g/m² |
| Wax coating weight two sides | 6-18 g/m² |
| Hot melt coating weight | 8-25 g/m² |
| Wax coating weight when laminating | 4-12 g/m² |
| Variation of coating weight in the width | +/- 0,1 g/m² |
| Operational temperature of wax or hotmelt | 60-180 °C |

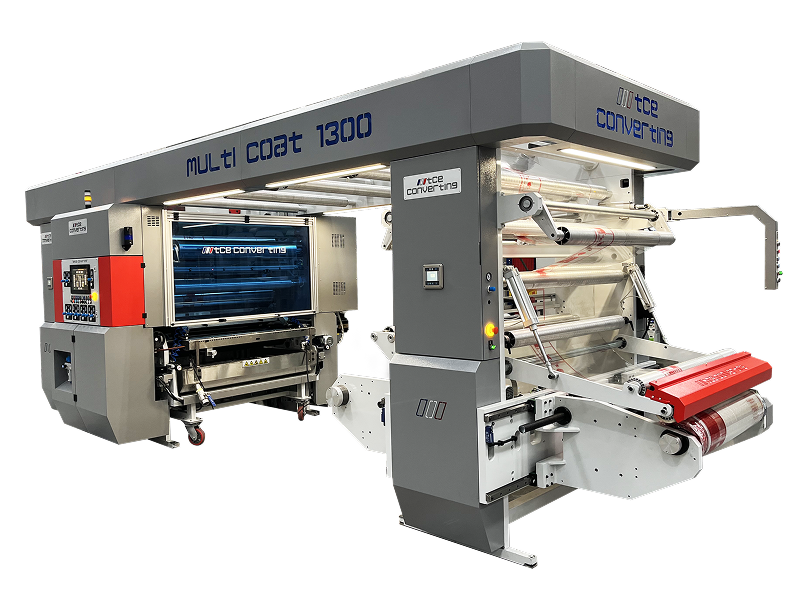

The Multi Coat 1300 by TCE Converting is a state-of-the-art solution combining coating and lamination in one advanced system. Designed for flexibility, efficiency, and precision, it helps you save space and maximize productivity.
Would you like to know more about Multi Coat 1300? Fill out our form and we will call you immediately and inform you.
